Digimold™ Premium Soft
Blending supreme comfort and superior acoustic coupling qualities, Digimold™ are suitable for all levels of hearing loss.
Carved and Deluxe Digimold™ are ideal for jaw movement problems, soft fleshy ears, allergy problems, malformed ears and great for paediatrics. If a lacquered finish is required our Digimold™ products provide this as standard.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM3108 | Digimold™ Premium Soft Shell |
| EM3145 | Digimold™ Premium Soft Carved Shell |

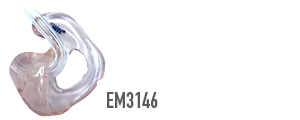

| EM3146 | Digimold™ Premium Soft Sculptured Shell |
3D printed tubing is available as a free of charge option for all Digimolds.
Please use one of the codes below to add this to your order.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| 2182 | Printed Tube |
| 2183 | Extended Printed Tube |
Hard
A light curing non-allergenic material, specifically developed for Starkey’s Ear Imaging Viper SLA fabrication process. This revolutionary approach to earmould fabrication utilises advanced CAD modelling software and hardware within the manufacturing process, providing styling and vent options previously considered impossible. Due to the high temperature used during the laser curing process, this material offers a minimal risk of skin sensitivity or allergy.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM2106 | Hard Shell |
| EM2106CS | Hard Carved Shell | EM4420 | Hard Hollow RIC Canal Mould with Canal Lock with Soft Chamber |
| EM4422 | Hard Hollow RIC Canal Mould with Soft Chamber |

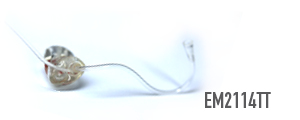

| EM2114TT | Hard Thin Tube Canal Mould* | EM2124 | Hard Half Shell |
| EM2107 | Hard Skeleton |
| EM2117 | Hard Half Phantom |
| EM2122G | Hard Open D Gap |
| EM2122R | Hard Open D Ring | EM2122C | Hard Open D Claw | EM2122E1 | Hard Open E Gap |
| EM2122E | Hard Open E Ring | EM2122E2 | Hard Open E Claw | EM2122F1 | Hard Open F Gap |
| EM2122F2 | Hard Open F Ring | EM2122F | Hard Open F Claw |
| EM2114 | Hard Canal |
| EM2114L | Hard Canal Lock | EM2101 | Hard Solid with Ring and Spring for Body Aid |
| EM2107CAI | Hard CAI Bruckhoff BC Skeleton Mould |
*ONLY Starkey thin tubes can be included in the hard TT mould. For NON Starkey
alternatives please order EM2129TT and include the thin tube of your choice with the order.
GOLD PLATED
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM2128SH | Gold Plated Shell |
| EM2128SK | Gold Plated Skeleton |
| EM2128SO | Gold Plated Solid with Ring and Spring for Body Aid |
Soft Silicone
Silicone is a soft, durable and non-allergenic material available in a wide variety of colours. Silicones offer superior acoustic sealing properties
and are suitable for any hearing loss including severe to profound. Silicone materials offer minimum risk of allergy or skin sensitivity.
We offer 3 different flexibilities of material, varying from soft, mid and firm. If you are using some of our legacy materials, you may want to consider
the following guide to help you select the correct material flexibility for
your finished digital earmould:
- 25 – Soft - similar to the legacy product Microflex
- 40 – Mid - similar to the legacy product Biopor
- 60 – Firm - similar to the legacy products of Bioplast and Soft Acrylic.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|

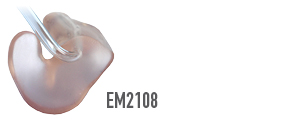

| EM2108 | Soft Silicone Shell |
| EM2108CS | Soft Silicone Carved Shell |
| EM3147 | Soft Silicone Carved Sculptured Skeleton |
| EM2129RIC | Soft Silicone RIC Canal Mould for All Make Receivers |
| EM2162RIC | Soft Silicone RIC Hollowflex Canal Mould for All Make Receivers |
| EM2163RIC | Soft Silicone RIC Helix Mould for All Make Receivers |
| EM2129TT | Soft Silicone Thin Tube Canal Mould |
| EM2134 | Soft Silicone Half Shell |
| EM2109 | Soft Silicone Skeleton |
| EM2133 | Soft Silicone Half Phantom |
| EM2170 | Soft Silicone Canal |
| EM2116CL | Soft Silicone Canal Lock |
| EM2102 | Soft Silicone Solid with Clip for Body Aid |
| 52817-004 | Universal Fit Soft Silicone RIC Helix Mould Set L&R |
| 52817-000 | Universal Fit Soft Silicone RIC Canal Mould Set L&R Size Medium |
| 52817-002 | Universal Fit Soft Silicone RIC Canal Mould Set L&R Size Small |
| 52817-003 | Universal Fit Soft Silicone RIC Canal Mould Set L&R Size X Small |
| 52817-001 | Universal Fit Soft Silicone Thin Tube Canal Mould Set L&R Size |
N.B. If a flexibility is not specified we will build a 40 mid texture silicone if colour choice permits.
Starkey Hearing Technologies Ltd recommends that tubing is secured in place for all mould orders for
children up to the age of 36 months. 3D printed tubing is available on all Digimolds or tubing can be glued in
postion for other mould types. Please mark your order ‘GLUE IN TUBE’ to receive this free of charge option.
Soft Silicone Flex Tip
A more flexible material can be combined to a firmer material, allowing a very soft meatal portion to be chemically bonded to a less flexible concha area, to create a flex tip effect.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM2110FT | Soft Silicone Shell Flex Tip |
| EM2125FT | Soft Silicone Half Shell Flex Tip |
| EM2111FT | Soft Silicone Skeleton Flex Tip |
| EM2118FT | Soft Silicone Half Phantom Flex Tip |
| EM2115FT | Soft Silicone Canal Flex Tip |
| EM2115LFT | Soft Silicone Canal Lock Flex Tip |
Soft Acrylic
This is a non digital process using a legacy material which is thermoelastic, and so softens with body temperature. We recommend soft acrylic moulds are replaced annually to maintain the desired texture. If considering a more robust material to replace this product we suggest the soft silicone firm textured mould.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM2112 | Soft Acrylic Shell |
| EM2112CS | Soft Acrylic Carved Shell |
| EM2126 | Soft Acrylic Half Shell |

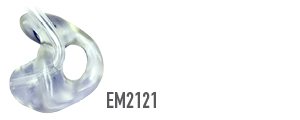

| EM2121 | Soft Acrylic Skeleton |
| EM2116 | Soft Acrylic Canal |
| EM2116L | Soft Acrylic Canal Lock |
Hard Flex Tip
This is a non digital process using a legacy soft acrylic material. This combination gives the cosmetic and convenience of a hard mould but with additional comfort and sealing properties of a soft acrylic tip. Due to the porous nature of the soft acrylic material, we recommend these products are replaced annually.
| PRODUCT CODE | PRODUCT DESCRIPTION |
|---|---|
| EM2110 | Hard Shell Flex Tip |
| EM2125 | Hard Half Shell Flex Tip |
| EM2111 | Hard Skeleton Flex Tip |
| EM2118 | Hard Half Phantom Flex Tip |

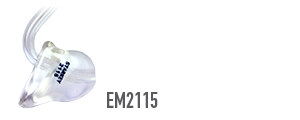

| EM2115 | Hard Canal Flex Tip |
| EM2115L | Hard Canal Lock Flex Tip |
Venting Styles
Power Vents
SLA offers a power vent option. This is a revolutionary venting design which is recommended for use with a high power instrument. It facilitates venting of the ear without the problem of acoustic feedback. The vent is clearly routed around the back of the concha bowl and into the helix. Any escaping acoustic energy is dissipated before reaching the microphone of the hearing aid. Such venting is impossible using manual techniques of manufacture.
Conventional Venting Options
- Large - 2.55mm
- Medium - 1.8mm
- Small - 1.2mm
Vari-Vent Option
- 4mm - 2.55mm available
